Tire Selection

When it comes to off-road tires, performance should always come before looks.

Choosing between all-terrain vs. mud-terrain tires is one of the most important steps in prepping your rig for the trail. Unless you’re building a race truck or tackling extreme rock crawling, you’ll likely be deciding between these two types.

Don’t be swayed by aggressive tread alone, just because a mud-terrain tire looks tougher doesn’t mean it’s the right fit for your driving style. Focus on how a tire performs in the real world.

Think about where you drive, how often, and what you actually need from your tires. Do the research, ask questions, and make a decision that fits your terrain and your goals.

• All-Terrain Tires

• Mud-Terrain Tires

• Sizing

• Tire Pressure

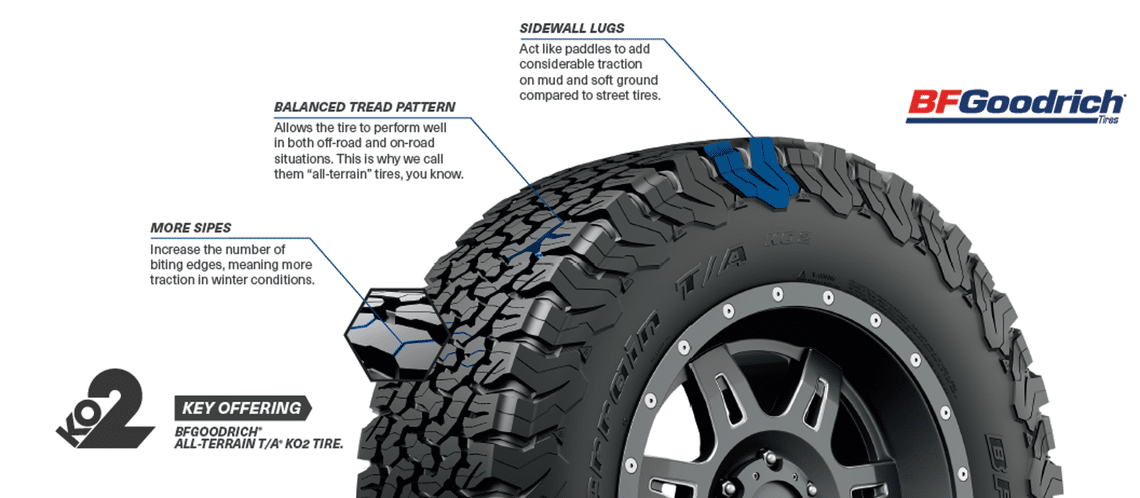

All-terrain tires are built to handle a wide variety of surfaces with balanced performance. Their less aggressive tread design offers better highway comfort, quieter ride quality, and improved on-road handling compared to mud-terrain options, while still holding their own on moderate trails.

Best for:

• Long-distance overlanding and expedition driving

• Mixing trail time with highway commuting

• 4x4 trucks used for towing or daily work

• Winter driving conditions where traction matters

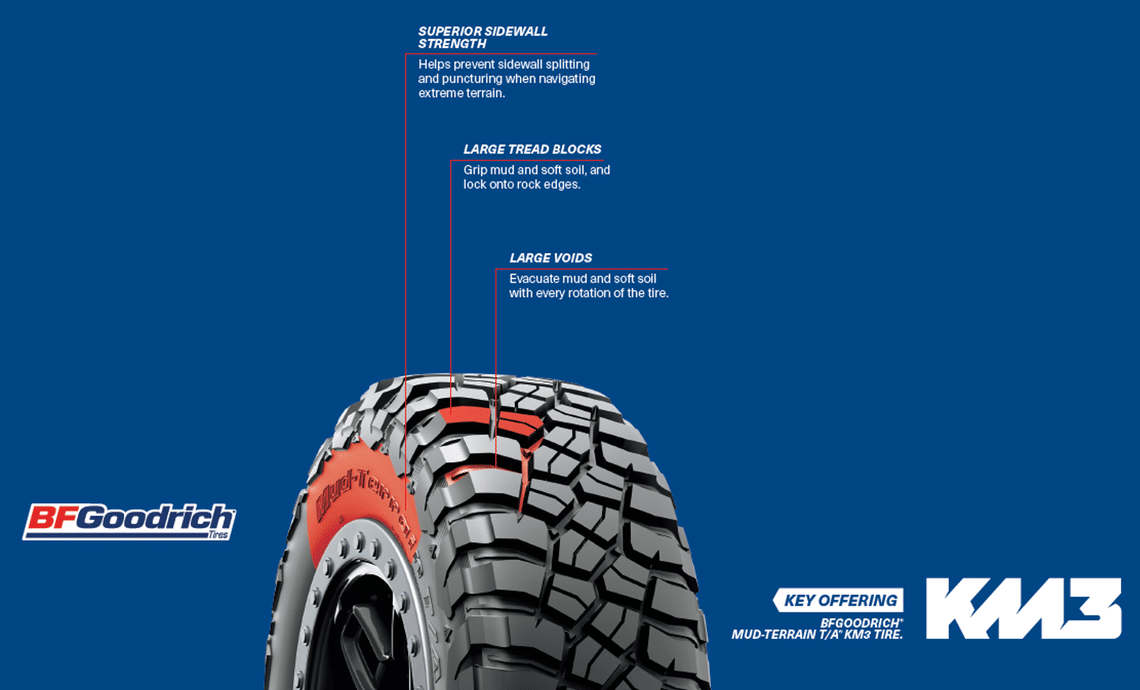

Mud-terrain tires are built for serious off-road traction. Their large tread blocks and wide voids are designed to eject mud, sand, and soft soil while gripping uneven surfaces like rocks and ruts.

These tires aren't quiet or fuel-efficient, but if you spend more time on the trail than the road, the trade-offs are worth it. Mud-terrains are all about control in the most unpredictable conditions.

Best for:

• Deep mud, sand, and loose soil

• Technical rock crawling and uneven trails

• Aired-down driving in low-traction environments

Not every build is meant to be street legal. For hardcore off-roaders and competitive drivers, extreme-use tires are available for specialized terrain.

BFGoodrich offers purpose-built options like the Baja T/A KR3 for desert racing and the Krawler T/A KX for extreme rock crawling. These aren’t tires you’ll find on a rack at your local shop, talk to your local BFGoodrich dealer to order exactly what you need.

Pro Tip

Alignment can easily get knocked out after trail time, but you can fix it in your driveway.

To set toe-in at home:

• Measure the distance between the front and rear of your front tires.

• Loosen the sleeves on both ends of the tie rod.

• Rotate the tie rod 1/16" to 1/8" inward.

• Tighten the sleeves once your toe-in is set.

• Center your steering wheel and you’re good to go.

Proper alignment helps your tires wear evenly and your vehicle track straight, both on the road and off it.

In off-roading, size matters, especially when it comes to tires. The right size can help your vehicle clear obstacles, improve stability, and even boost performance in loose terrain.

Thinking about going bigger? Make sure you understand what comes with that choice. Larger-than-stock tires often require aftermarket modifications like a lift kit. That may also mean adjusting brake lines, steering geometry, and suspension components. All those changes can impact handling and increase your rollover risk.

The golden rule: Choose the tire that matches your terrain and your build. Off-road recovery can be tricky, especially in remote areas, so it's smarter to be prepared than to get stranded.

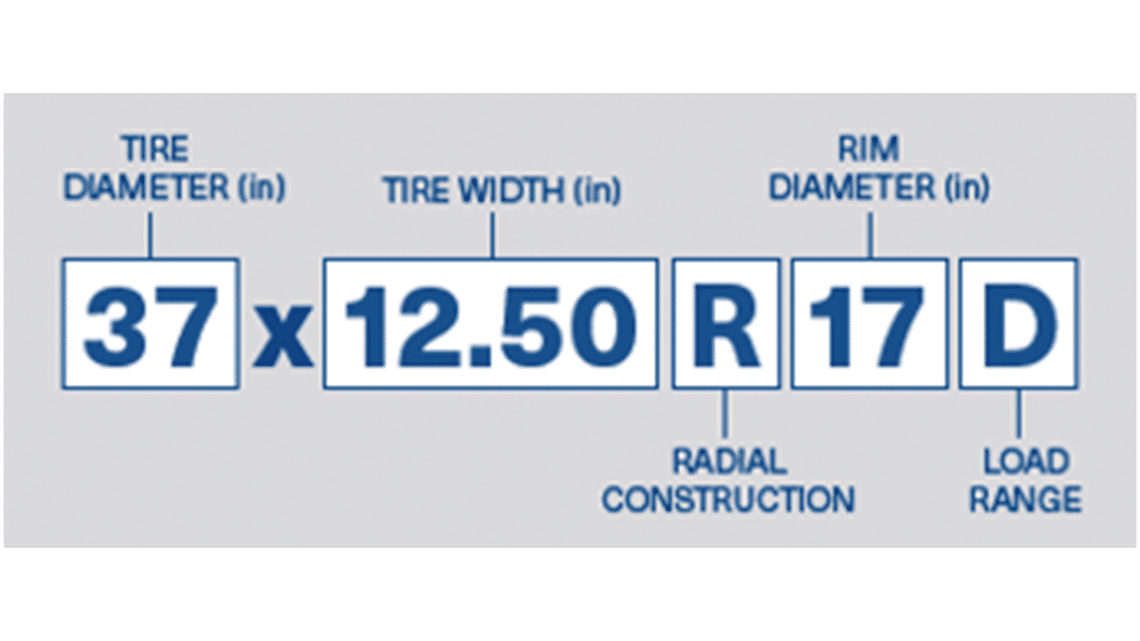

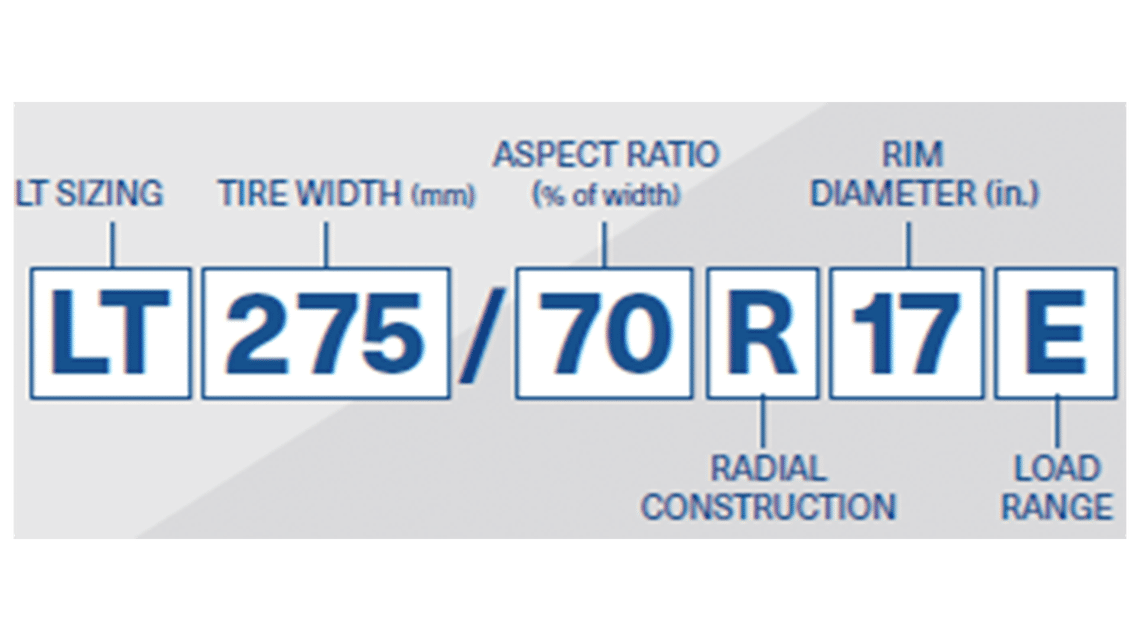

Most off-road tires fall into one of two categories: LT-metric or high-flotation.

You don’t need to be a scientist to understand the importance of tire pressure, but you do need to manage it. Correct pressure helps extend tire life, improves traction, and optimizes vehicle control across different terrains.

Because trail conditions vary, you’ll need to adjust tire pressure depending on where you’re driving. Always carry a reliable pressure gauge and portable air compressor. That way, you can deflate for grip and reinflate for the ride home.

Proper tire pressure is essential for safe on-road driving. It directly affects your vehicle’s handling, traction, and tread life.

If you're running your vehicle on original equipment (OE) tires, always follow the manufacturer’s recommended PSI for both front and rear tires. You’ll find this info:

-In the owner’s manual

-On the tire placard (typically located inside the driver’s side door)

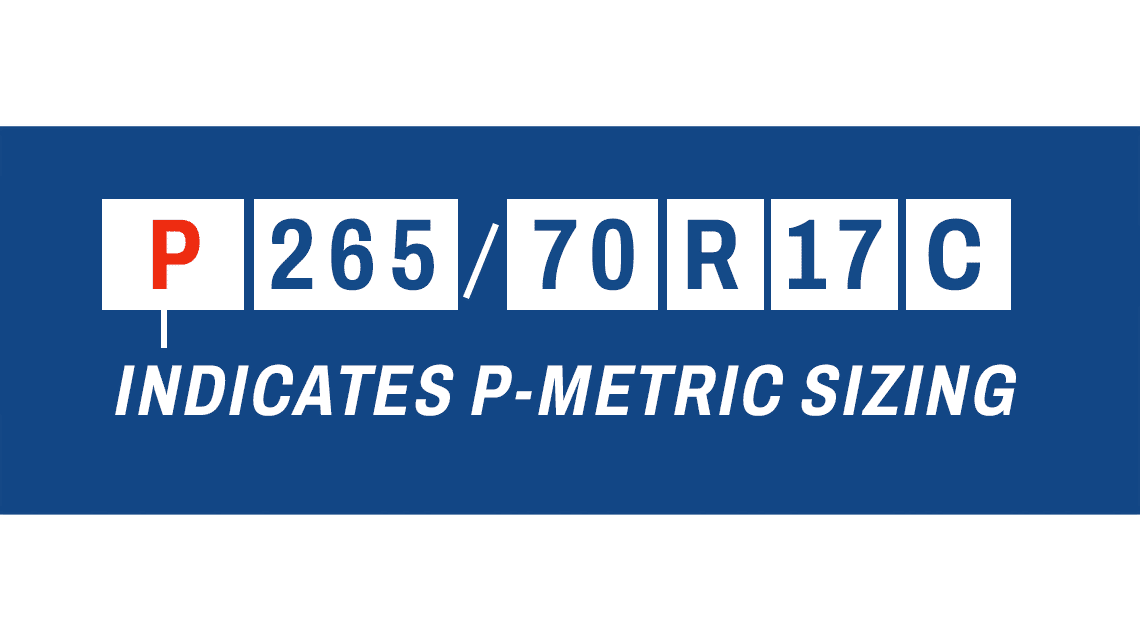

However, if you’ve upgraded from P-metric tires to LT-metric or high-flotation tires, it’s not a one-size-fits-all equation anymore. These tires have different load and inflation requirements. To avoid underinflation or overinflation, consult the tire manufacturer’s pressure recommendation for your specific size and use case.

Getting this right ensures your off-road tires deliver optimal performance when you return to paved roads.

Changing Tire Size Affects Recommended Pressures

When you upgrade to a larger tire size, the manufacturer’s recommended pressures (listed on your vehicle’s door placard and in the owner’s manual) no longer apply. Larger tires typically require less pressure to carry the same load.

Don’t guess. Always consult a tire professional to calculate the correct tire pressure for your upgraded setup. The right PSI ensures optimal safety, handling, and tread life.

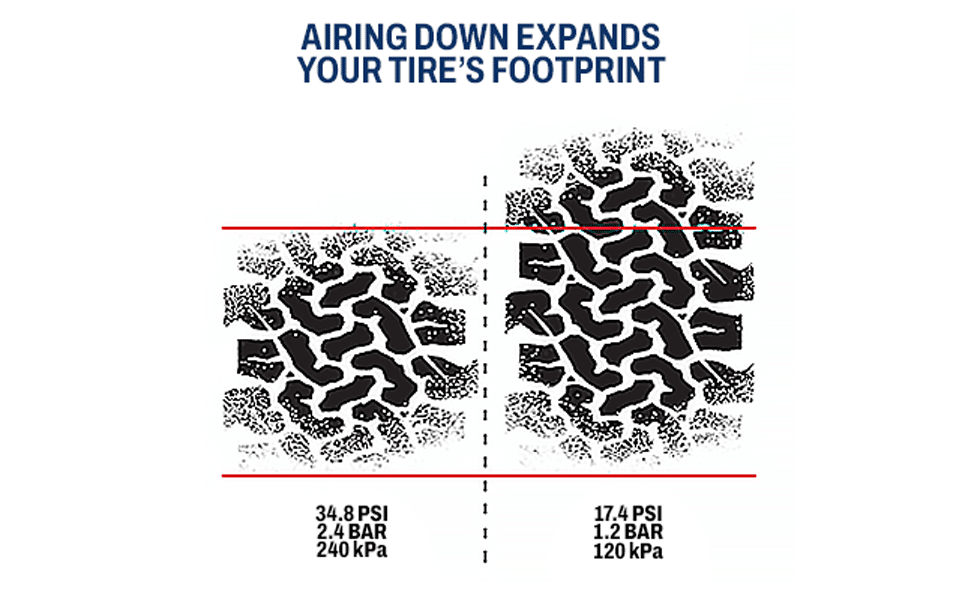

Airing down, lowering your tire pressure, is one of the most important off-road techniques. It increases your tire’s footprint for better traction on soft or uneven terrain and creates a smoother ride over bumps and rocks.

That said, there’s no universal number. The best air-down pressure depends on your tire type, terrain, and vehicle weight. If you’re new to off-roading, talk to a seasoned driver before airing down for the first time.

Keep in mind:

• Tire pressure changes with temperature. Cold mornings = lower pressure. Hot days or direct sun = higher pressure.

• Always check your PSI before you hit the trail, not after.

• If your pressure reads “perfect” when the tire is hot, it’ll be too low once it cools down.

• Don’t overdo it. Too little pressure can unseat the tire from the rim and cause serious damage. Beadlock wheels can help prevent this if you air down often or to very low levels.

Even the most rugged off-road tires can take a beating. Make it a habit to inspect your tires for cuts, bulges, and other visible damage before and after every trail run.

And always be prepared in case of a flat. Here's what you should carry:

• Full-size spare tire and wheel (within ±1 inch of your main tire diameter)

• 4x6 wooden block – gives your jack the extra lift needed on uneven terrain

• Tire plug kit – for quick, temporary trail repairs

• Portable air compressor and pressure gauge – for inflation and monitoring

If you’ve used a temporary fix, visit a tire shop once you're back on pavement. Replace any tire with sidewall punctures, deep gashes, or compromised integrity.

Always Air Up Before Returning to the Road

Tires that are aired down for off-road use must be reinflated before driving on paved roads. Underinflated tires can:

• Reduce handling and traction

• Accelerate uneven treadwear

• Run hotter, increasing the risk of blowouts

Pro Tip:

Never head off-road without a way to air back up. Whether it's a portable compressor or a CO₂ tank, reinflating your tires is critical for safe highway performance.
